Retrieve Branch Dimension for Customer Account Statement Logo

This customization sets the LogoDimension field on CustAccountStatementExtTmp by retrieving the Branch dimension associated with the customer account. The code identifies the customer through AccountNum, loads its default dimension set, and retrieves the display value for the Branch dimension. The resulting value is assigned to the report temporary record.

X++ Code

   {
        HAW_CustomerAccountstatement_EventHandler obj = new HAW_CustomerAccountstatement_EventHandler();
        CustAccountStatementExtTmp CustAccountStatementExtTmpnew = sender as CustAccountStatementExtTmp;
        CustAccountStatementExtTmpnew.LogoDimension = obj.getdimesnion(CustAccountStatementExtTmpnew.AccountNum);
    }

    public Name getdimesnion(AccountNum _accountNum)
    {
        CustTable custTable;
        DimensionAttribute dimensionAttribute;
        DimensionAttributeValueSetStorage dimStorage;
        str brandName;

        select firstOnly custTable where custTable.AccountNum == _accountNum;

        dimStorage = DimensionAttributeValueSetStorage::find(custTable.DefaultDimension); //custTable.DefaultDimension, 5637144577

        select firstOnly dimensionAttribute
            where dimensionAttribute.Name == 'Branch';

        if (dimensionAttribute.RecId)
        {
            brandName = dimStorage.getDisplayValueByDimensionAttribute(dimensionAttribute.RecId);
        }
        return brandName;
    }

}

Process Flow

The customer account statement temporary record is cast to CustAccountStatementExtTmp, and its AccountNum is passed to getdimesnion().

The method retrieves the corresponding CustTable record and loads its DefaultDimension through DimensionAttributeValueSetStorage.

It then finds the Branch dimension and retrieves its display value when the dimension exists.

The returned value is assigned to the LogoDimension field of the temporary report record.

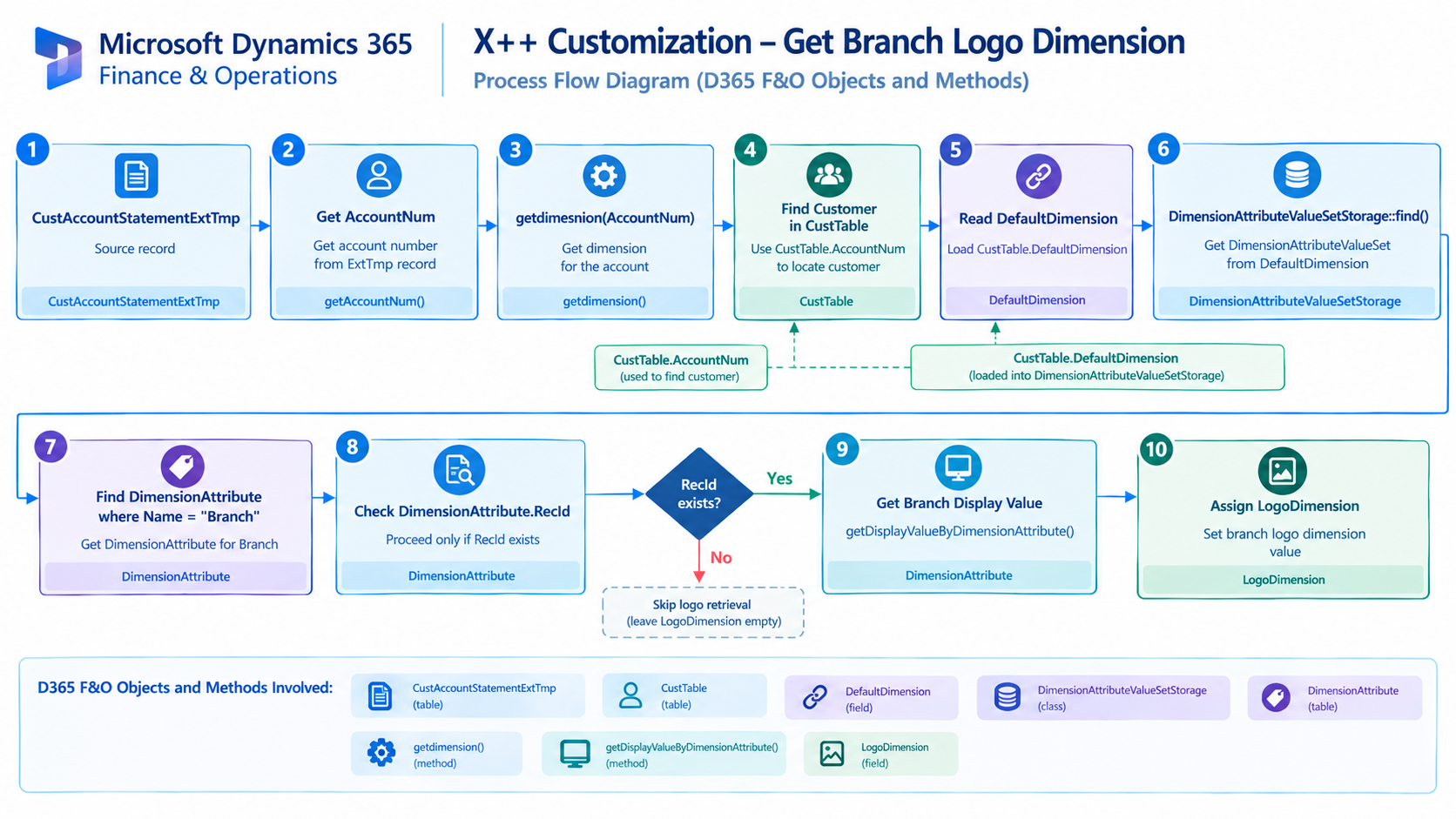

Figure: Flow of retrieving the Branch dimension from the customer account and assigning it to the Customer Account Statement temporary record.
